Advance Sigma DLS - XC Sports Class Paraglider
Cross Country, but make it fun!
The SIGMA DLS promises a performance boost and plenty of fun while thermalling thanks to its forgiving flight characteristics. The redesigned internal structure not only makes this cross-country sportster more powerful but also lighter. This is achieved with mini ribs featuring nitinol wires at the leading edge and a Durable Lightweight Structure that perfectly balances lightness and robustness. The SIGMA DLS weighs from just 3.70 kg.
PROGRESSIVE
Performance Leap
Along with the new profile, the front mini ribs ensure that the aerodynamically critical leading edge remains precisely shaped. The resulting high profile fidelity significantly contributes to the performance leap of the SIGMA DLS (compared to the SIGMA 11). Despite this improvement, it continues to meet the familiar pilot requirements of the previous series.
PLAYFUL
New sportiness
XC enthusiasts can look forward to an exceptional balance of performance and ease with the SIGMA DLS. The tried-and-tested three-liner concept ensures a forgiving character with safety reserves. The new cross-country sportster responds to control inputs precisely and directly, providing a fun flying experience in thermals.
BALANCED
Robust Lightness
With DLS technology, the over 30-year tradition of the SIGMA series meets the future. Detailed construction optimizations and an ideally matched material mix make the SIGMA DLS surprisingly light (available from 3.7 kg). The super-elastic Nitinol wires reduce pack volume and increase durability, as they do not deform even under greater stress.
Technology & Features

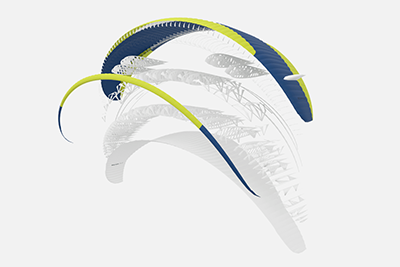

DURABLE LIGHTWEIGHT STRUCTURE (DLS)
DLS combines a number of small but important innovations, which together save a lot of weight. The mix of lightweight and conventional fabrics is now better targeted and additional weight is saved through specific geometric optimisations.

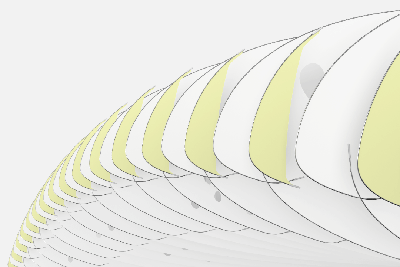

NITINOL FRONT-MINIRIBS
The additional nitinol front mini ribs ensure that the canopy maintains its precise shape, especially at the aerodynamically crucial leading edge. Detailed calculations of the mini ribs enable optimal profile fidelity in every flight condition. This is a key factor that enables the high performance of the SIGMA DLS.

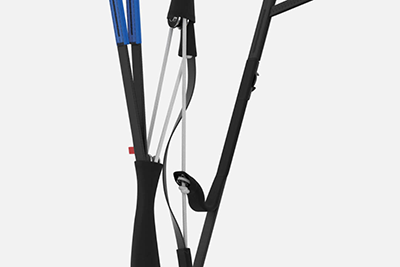

EFFECTIVE PITCH-CONTROL-SYSTEM
The SIGMA DLS has a modern pitch control system with C handles. C level inputs are transmitted directly from C to B level so that the wing profile shape is maintained. The glider delivers its full performance potential even when actively controlled by C handles.

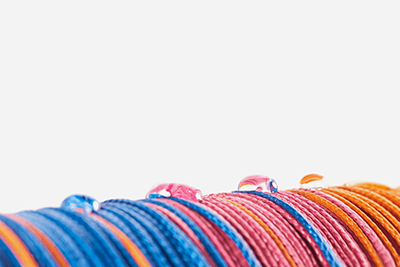

HIGH-TECH EDELRID PRO DRY LINES
The SIGMA DLS line set is extremely length-stable and retains above-average tensile strength, even after many flights. Unsheathed Pro Dry lines are colour-coded and 60% more water-repellent than previous-generation lines.
Technical data
| SIGMA DLS | 20 | 22 | 24 | 26 | 28 |
|---|---|---|---|---|---|
| Flat surface [m²] | 20.36 | 21.96 | 23.53 | 25.47 | 27.34 |
| Projected surface [m²] | 17.35 | 18.71 | 20.05 | 21.70 | 23.30 |
| Certified takeoff weight [kg] | 57-75 | 68-87 | 80-100 | 92-114 | 105-128 |
| Ideal weight range [kg] | 61-72 | 72-84 | 84-97 | 97-110 | 110-124 |
| Glider weight [kg] | 3.70 | 3.90 | 4.10 | 4.35 | 4.60 |
| Span [m] | 11.14 | 11.57 | 11.98 | 12.46 | 12.91 |
| Projected span [m] | 8.84 | 9.18 | 9.50 | 9.88 | 10.24 |
| Aspect ratio | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 |
| Projected aspect ratio | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Max. chord [m] | 2.30 | 2.39 | 2.47 | 2.57 | 2.66 |
| Number of cells | 65 | 65 | 65 | 65 | 65 |
| Certification | EN/LTF C | EN/LTF C | EN/LTF C | EN/LTF C | EN/LTF C |
Materialien
| Leading edge | Skytex 38 universal |
|---|---|
| Upper surface | Skytex 32 universal |
| Lower surface | Skytex 27 classic II |
| Designstripe | Skytex 32 universal |
| Profiles | Skytex 40 hard finish, Skytex 32 hard finish, Skytex 27 hard finish |
| Unsuspended profiles | Skytex 27 hard finish |
| Diagonals | Skytex 40 hard finish, Skytex 27 hard finish |
| Tension tapes | Skytex 40 hard finish |
| Main lines | A-8001-230, -190, -130 |
| Gallery lines | A-8001-130, -090, -070, -050 |
| Brake lines | A-8001-050, -070 |
| Steering lines | A-8001-190, A-7850-240 |
| Stabilo | PPSLS 125 |
| Risers | PES/Technora 12mm |
| Quick links | MR Delta 3.5mm / S12 |
