PHI Fantasia

(0)

Get ready for the big adventure!

3.150,00 €

* All prices incl. tax, plus shipping

Compare

Add to listmania list

Add to wish list

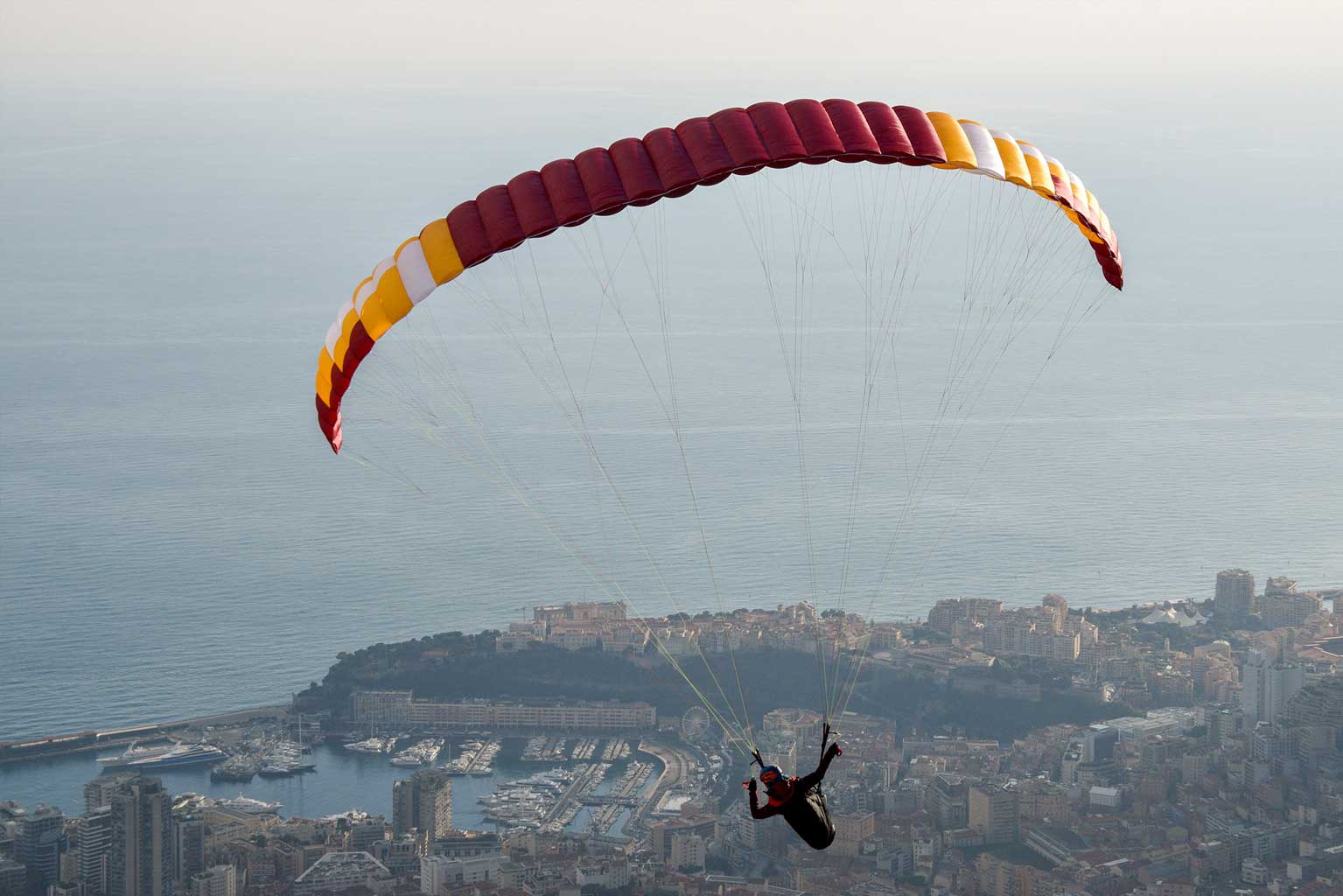

Apart from the extraordinary security and the extreme simplicity of the FANTASIA, it has some special technical features for this class, like the only 3 suspension levels over most of the span. We have also banished any Dyneema lines (as well from the brakes) in order to achieve better trim stability. Due to the spartan structure, the FANTASIA is very light even in the robust 30D / 20D mix. Performance doesn’t really matter in this ultralow class, but we found that we “can’t get rid of the performance, typical of our designs.” Due to the profile used and the very clean finish (zig zag 3D shaping), this simple wing still performs very well. FANTASIA rises extremely efficiently in thermals. It also glides remarkably well against the wind (the very stable profile used does not bank up).

Manufacturer: PHI
EN: A

FANTASIA
	XS	S	M	L	XL
size	18	20	22	24	26
number of cells	36	36	36	36	36
projected span [m]	7,99	8,4	8,82	9,18	9,58
projected area [m²]	18,51	20,47	22,54	24,46	26,61
projected aspect ratio	3,45	3,45	3,45	3,45	3,45
flat span [m]	10,03	10,55	11,06	11,52	12,02
flat area [m²]	21,41	23,68	26,07	28,29	30,77
flat aspect ratio	4,69	4,69	4,69	4,69	4,69
line length [m]	6,13	6,45	6,77	7,05	7,35
total line length [m]	255,1	268,2	281,4	293,1	305,7
maximum chord [m]	2,65	2,78	2,93	3,05	3,18
minimum chord [m]	0,66	0,7	0,73	0,76	0,79
weight [kg]	3.99	4,5	4.66	4.92	5,3
standard weight range [kg]	50-75	65-85	75-95	90-110	105-130
certification (EN/LTF)	A	A	A	A	A
material	Dominico 30D, 20D
risers	RZ2 (3+1)
riser length	500	500	540	540	540
speedway	150	150	150	175	175
